micro beer equipment for brewing brewery

Product Description

Product Description

Product Application

The whole set equipment is made of austenitic stainless steel.The cooling jacket adopts dimple jacket.
The jackets are provided at tank body and conical bottom to effectively increase the cooling speed.
Heat exchanging area of jacket of different proportions can be allocated according to customer's technological requirements. Widely used in brewery,bar, hotel,family etc.

Item
Model
Technical Specifications
Malt Mill
80kg/h
two roller mill, carbon steel shell, alloy rollers
complete with motor, belt and pulley, motor power 2kw
300L
effective capacity 300L, total capacity 450L,
top dished head,material SS304, interior sand polished,
cladding surface mirror finish, welding seams brushed
electric heating elements, mineral wool insulation, thickness 80mm,
300L
effective capacity 300L, total capacity 450L,
top dished head,
material SUS304, interior sand polished,
cladding surface mirror finish, welding seams brushed
Fermentation Tank
600L
cladding surface wire drawing plate finish, welding seams brushed
top dished head, bottom cone,
material SUS304, interior sand polished,
Yeast Adding Tank
6L
effective capacity 6L, inside polished
outside sand blast, associated valves and fittings
Glycol Tank
800L
material SUS304, interior sand polished,
Sanitizer Tank
50L
effective capacity 50L, interior & exterior 2b finish,
welding seams brushed, associated valves and fittings
Caustic Tank
50L
effective capacity 50L, interior & exterior 2b finish,
welding seams brushed, associated valves and fittings,
electric heating elements
Control Cabinet
600x350x1500
power supply, temperature display centrally,
Brewhouse manual control,
fermentation tanks separate control with digital controller separately
variable frequency control for motors, pumps, etc.
Digital Controller
2105-Y
separate control for each fermentation tank,
temperature local display & control on controllers

Main Features

Size: Micro/Middle-type/Large-scale

Material: Stainless steel/red copper

Control Ways: DCS control/PLC control

Heating Methods :Steam/Electric/Gas

Application Field:DIY Home Brewing Micro/Mini Beer Brewery Equipment;Pub,Bar,Hotel,Restaurant Commercial Beer Brewing Equipment Factory,Industrial Beer Brewing Equipment laboratory teaching and so on.

Automation Level: Manual, Semi-auto,Full-auto

Undertake Project Ways:  Turnkey Project Vessel&Tank or Fitting Part Only.

Certifications
Detailed Images

Brewhouse System:


1.Sanitary Stainless steel 304, Effective volume:       1000L;
2.Surface brushed, welding line polish sanding light belt;
3.Rockwool insulation, thickness: 100mm;
4.Inner body thickness 3mm, cladding thickness      2mm;
5.Top domed manhole with sight glass,



Fermentation system

1.Sanitary Stainless steel 304, conical vertical tank
2.dome top head; Surface brushed, welding line polish sanding light belt;
3.Polyurethane insulation, thickness: 100mm; inner body thickness 3mm, cladding thickness 2mm;
4.Top breather valve; Side manhole; With rotary CIP spray balls and arm
5.Mechanical pressure valve; Pressure gauge;

Cooling System

1.Sanitary Stainless steel 304
2.Surface brushed, welding line polish sanding light belt
3.Polyurethane insulation, Insulation thickness: 100mm
4.Stainless steel legs with bigger and thicker base plate, with screw assembly to adjust leg height

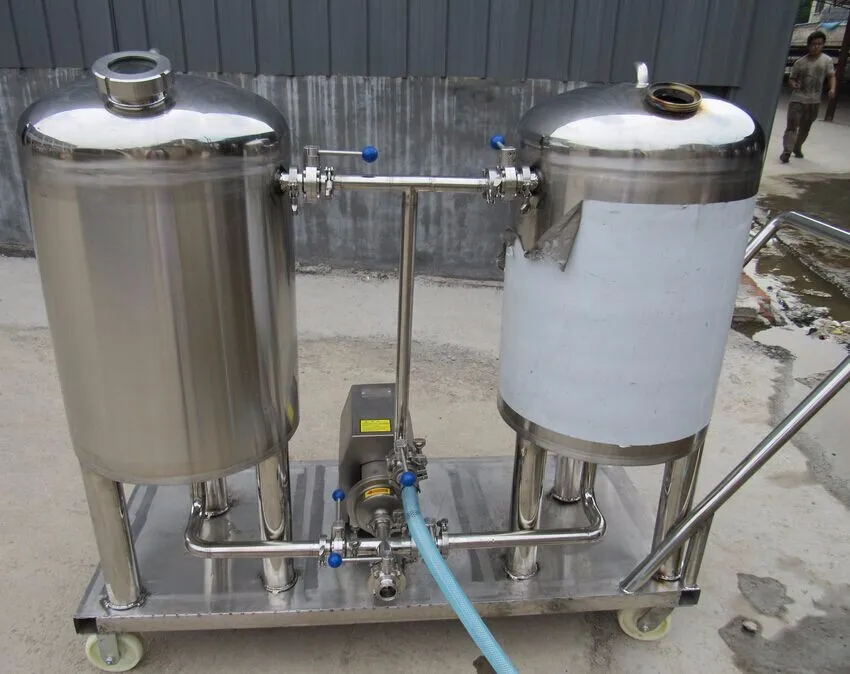

 CIP System

Sanitary Stainless steel 304, Effective volume: 100L, Inner polished, outer sand polished,
complete with associated valves and fittings.

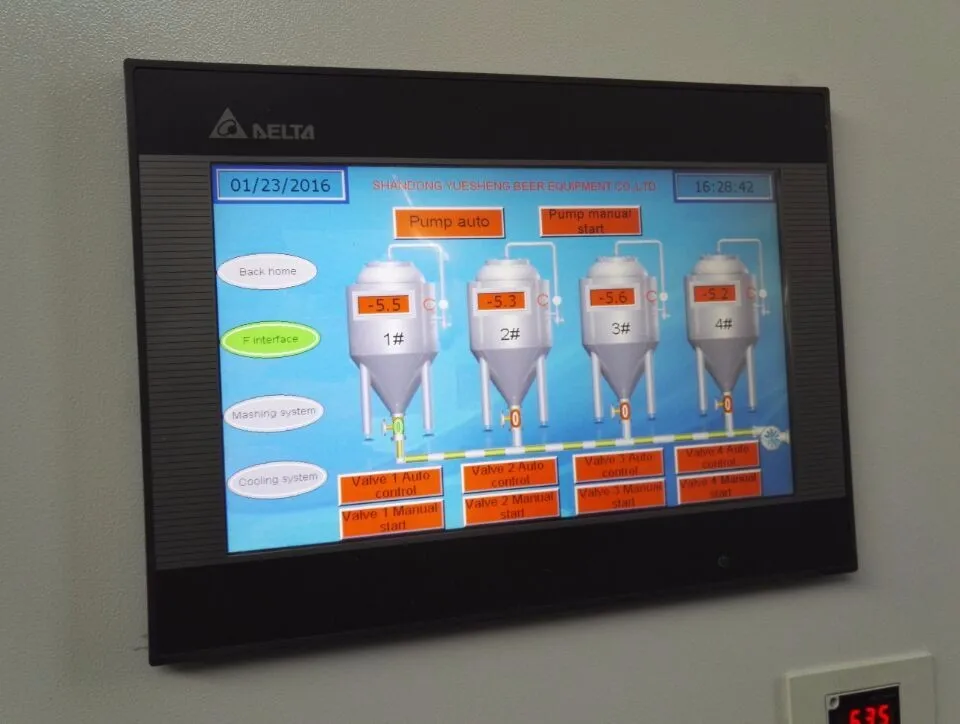

Control System

PLC system with fully furnished,fully functional,applicability,small size,light weight and low energy consumption such charactors,It is with liquid crystal display,touch screen control.

DCS control system is with high stability,openness, flexibility and coordination and ease of maintenance such charactors.It adopts independent instrument display,control buttonsand knobs.


Our Service

Pre-Sales Service


Our market team can serve you in 24 hours, so please feel free to contact at your conveninent.
Our dedicated engineers can supply 2D,3D drawing for you if you needed.
If you need to inspect our factory, we can book the hotel and make the invitation letter for you.
Customize machine can be offered(voltage,material,dimension,heating source and so on)

After-Sales Service


When shippment, we will supply a whole set of parts for backup.
If there is any parts damaged, we are surely can send the part to you in 24 hours.
Main machine is 3 years warranty, auxiliary machine is 12 months warranty,electrical components is 18 months warranty, life long service
